Polyurethane FDA & ATEX Bellows

Bespoke design and manufactured FDA and ATEX rated polyurethane bellows.
Polyurethane Flexible Connectors

Polyurethane FDA and ATEX bellows



Our UK facility proudly manufactures polyurethane FDA & ATEX bellows tailored to your specifications. Our expertise extends to crafting bespoke designs, including transparent thermoplastic polyurethane film (TPU) flexible bellows. These clear PU bellows are FDA-approved and can be ATEX-rated for hazardous explosive environments, offering safety and versatility. With excellent abrasion properties and transparency, they allow for visual monitoring of product flow.

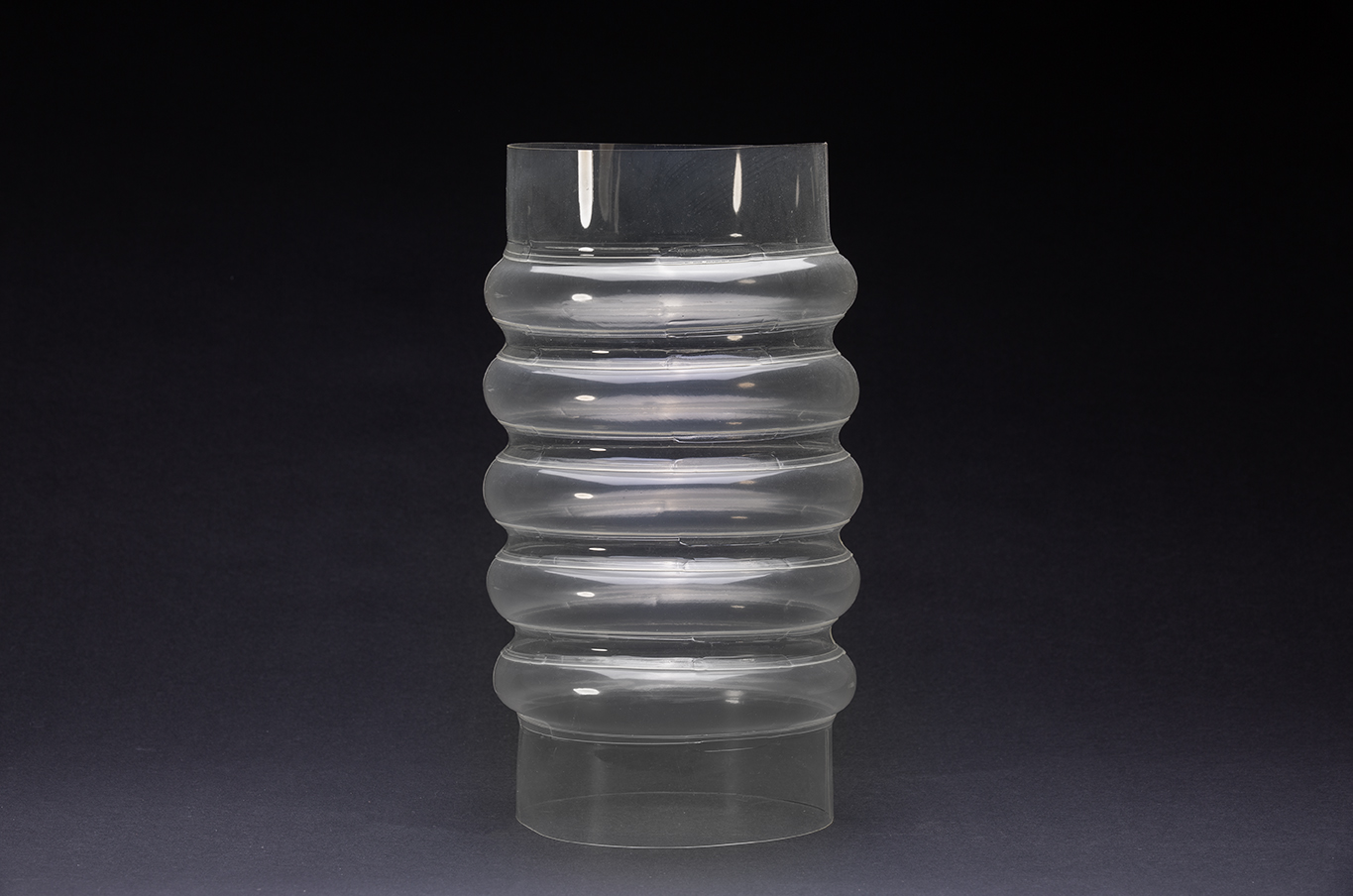

Each PU bellow is customisable in terms of diameter and length to meet specific application needs. Our standard design features a single central convolution for axial compression, with the option to add additional convolutions for increased movement requirements. We can incorporate more convolutions for applications with higher vibration or sieve demands to accommodate axial and lateral movement.

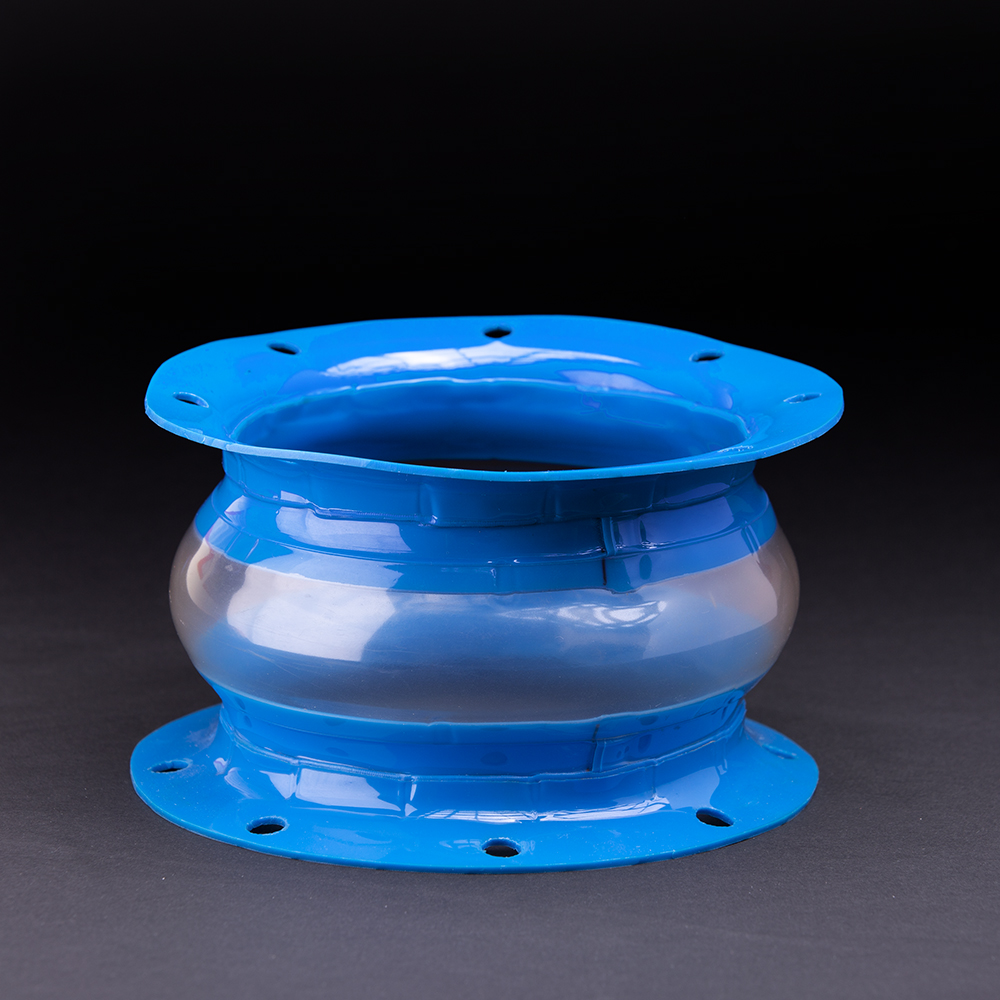

Beyond standard designs, we offer variations, including bellows with flanges, conical reducers, or internal PU flow sleeves, optimising product guidance and minimising build-up issues. However, our standard polyurethane flexibles may be a more suitable choice for applications where movement or misalignment isn’t a concern.



For more information, click here.

Need a connector but have no drawing? We have editable drawings for you to use; click here.

Polyurethane Flexible Bellows

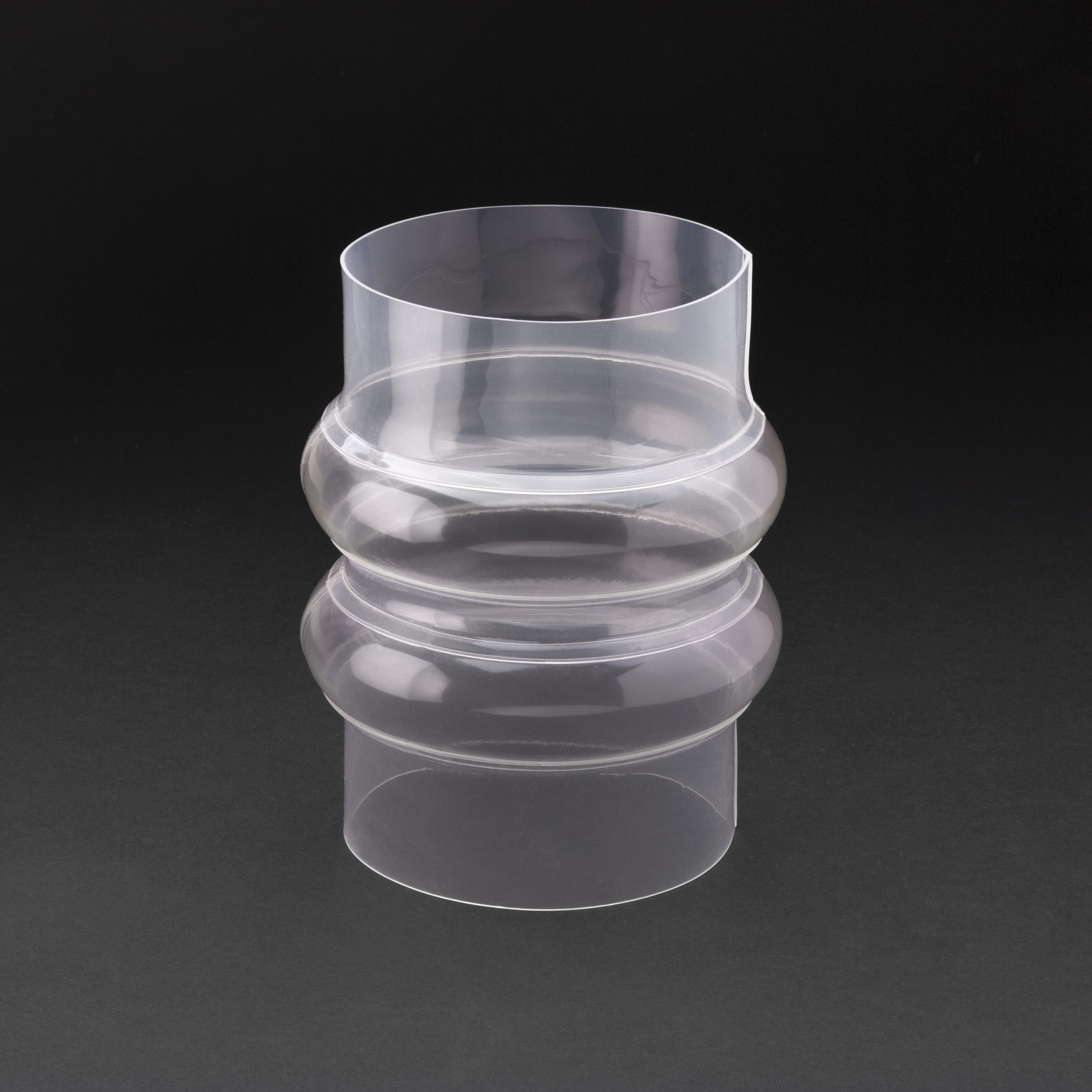

Clear FDA Approved polyurethane bellows

Standard Materials

0.35mm and 1mm clear FDA and ATEX polyurethane
0.35mm, 0.6mm and 1mm standard clear polyurethane
1.5mm blue and black polyurethane cuffs
1mm blue metal detectable FDA polyurethane

Applications

Powder and granule gravity fed systems
Load cell flexibles
Pipe misalignment
Viewing and inspection for flow monitoring
Sieve bellows
Anti-vibration

Ask the experts

With over 50 years experience manufacturing bespoke flexible connectors, we can help with the design process and material selection. Why not give us a call to see how we can help you find the right solution.

Call us on 01606 836024 or email: sales@flexibleconnections.co.uk

Get in touch today for a quote

Feel free to drop us a line if you have any questions or bespoke requirements

Related products

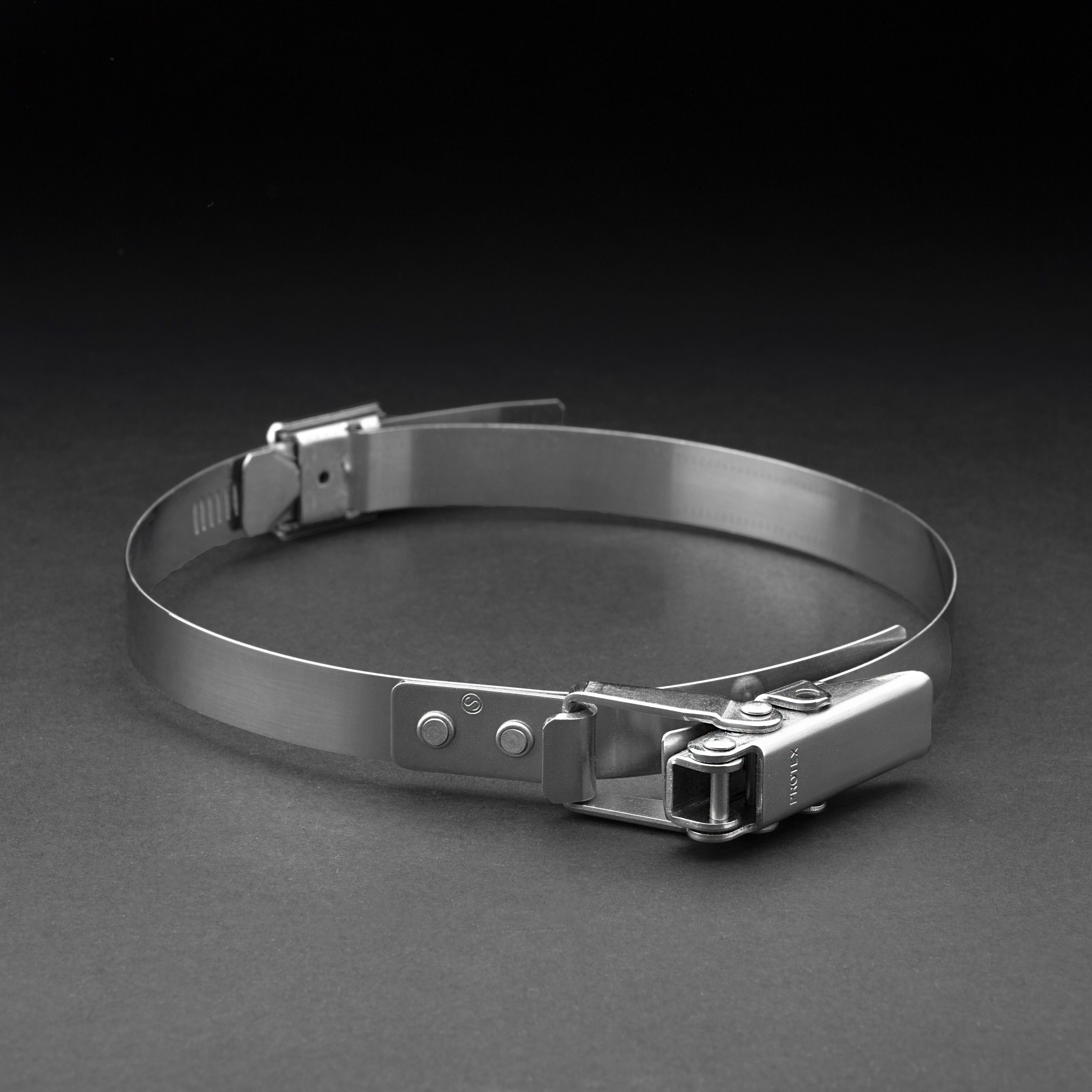

Clips
